400G Digital Coherent Optics: Optech’s QSFP‑DD Solution for Next-Gen Data Networks

High-Density, Long‑Reach Connectivity for Data Centers, DCI, and Metro Links

As the demand for bandwidth soars — driven by AI, cloud services, and data‑intensive workloads — network designers and operators require optical solutions that deliver both high capacity and flexible reach. Optech’s 400 G QSFP‑DD digital coherent modules provide exactly that: a compact, high‑density form factor supporting up to 400 Gbps per wavelength, enabling both dense data‑center interconnect (DCI) links and regional long‑haul connectivity.

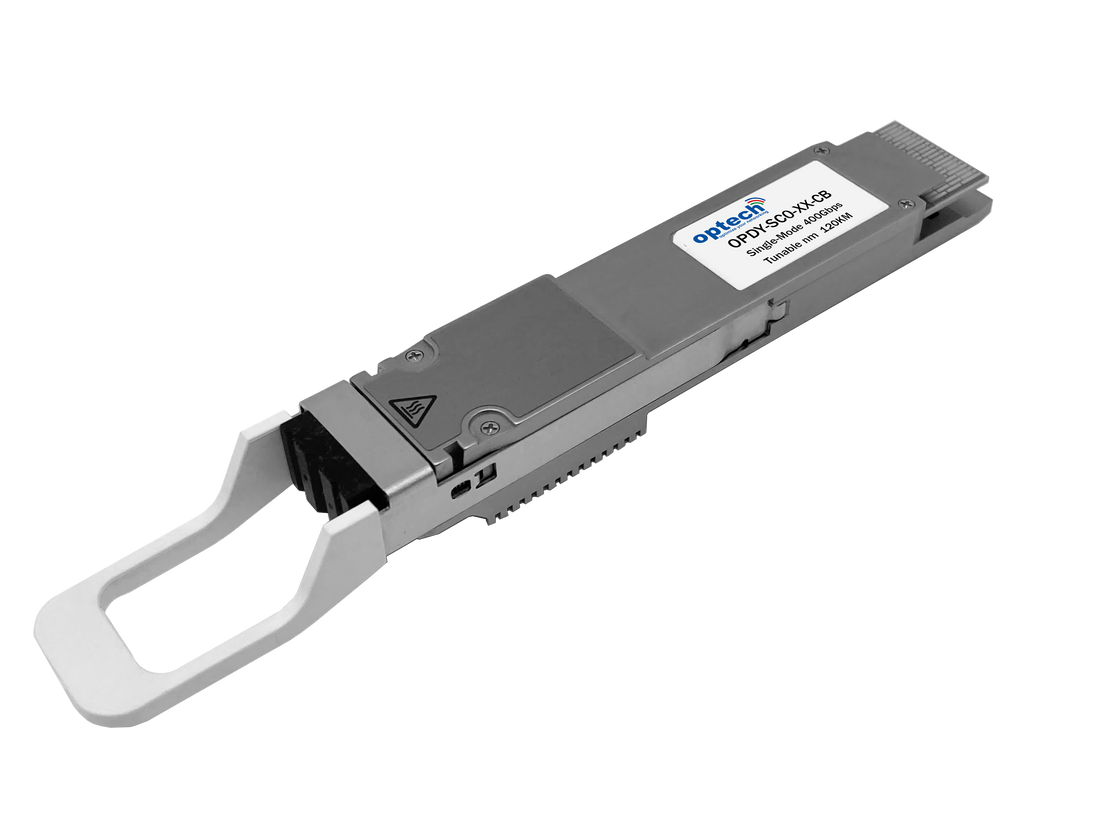

📦 Module Overview — QDD‑400G‑ZR, ZR+, ZRP+

Module Use Case & Reach Modulation & Features
QDD‑400G‑ZR Short to medium‑haul DCI / Metro links, up to ~120 km (with DWDM and amplification)  400G per wavelength, typically DP‑16QAM, OIF 400ZR‑compliant, low-power QSFP‑DD pluggable.
QDD‑400G‑ZR+ Extended metro / regional DCI, more challenging fiber or ROADM paths, up to ~250+ km depending on amplification & optical budget  Enhanced coherent DSP/optics, tunable wavelength, support for DWDM channels with stronger OSNR tolerance, per OpenZR+ spec.
QDD‑400G‑ZRP+ Premium long-reach, high‑capacity links — backbone, regional aggregation, or cross‑metro DCI, suitable for complex network topologies High-output-power coherent optics, strong OSNR, tunable C‑band DWDM, flexible baud rates and modulation (e.g. QPSK/16QAM, FEC options) for robust long-distance links.

All three maintain the compact QSFP‑DD form factor (about 18.4 mm × 93.4 mm × 8.5 mm) ensuring high port density — up to 36 ports per 1U on many modern switches, greatly improving rack utilization.

🚀 Why Coherent 400G QSFP‑DD Is a Game-Changer

• High Capacity & DWDM Flexibility

The 400G coherent modules transmit 400 Gbps over a single DWDM wavelength, enabling high‑capacity links without requiring multiple fibers. This dramatically increases fiber utilization and simplifies cable infrastructure.

• Compact, Plug‑and‑Play Form Factor

Unlike traditional coherent systems requiring large form‑factors (e.g. CFP2) or discrete line cards, QSFP‑DD coherent optics plug directly into standard 400G switch/router ports, reducing CAPEX, power consumption, rack‑space, and installation complexity.

• Multi‑Vendor & Multi‑Rate Interoperability

Compliant with OIF 400ZR / OpenZR+ / QSFP‑DD MSA standards, Optech’s modules are designed to work across a broad range of switches, routers, optical line equipment, and DWDM infrastructure, allowing operators flexibility and vendor independence.

• Cost & Power Efficiency for DCI and Metro Deployments

Compared to traditional discrete coherent systems — which demand separate transport equipment — pluggable coherent modules significantly reduce total cost of ownership. Their lower power draw (typically ≤ 16.5 W) and simplified cabling are well suited for data‑center interconnects, metro backhaul, and 5G/edge networks.

🏢 Typical Use Cases for Optech 400G Modules

  • Hyperscale Data Center Interconnect (DCI): High-throughput, low-latency links between data halls or campuses up to ~120–250 km, supporting 400GE, 4×100 GE breakout, or OTN.

  • Metro / Regional Backbone: Aggregation or peer links for ISPs / cloud providers — long-haul ZR+ modules ensure high capacity without compromising flexibility.

  • Carrier & Telecom Networks: For 5G backhaul, mobile edge computing, or cloud region interconnects, where DWDM and coherent optics bring scalability and resiliency.

  • Colo / Inter-Provider Peering: High-density, multi‑vendor environments benefit from plug‑and‑play coherent modules that simplify upgrade paths and vendor lock-in.

🧰 Deployment Considerations & Best Practices

  • Amplification / DWDM: For reaches beyond ~80 km, plan for inline amplification (EDFA/Lambda‑mux) and proper OSNR. ZR often covers up to ~120 km with amplifier — ZR+ or ZRP+ better for longer, multi-span links.

  • Power Budget & Thermal: Ensure switch ports deliver required power (typ. +3.3 V, ~16 W) and thermal conditions for stable operation.

  • Interoperability Planning: Stick to standard MSA specs (OIF 400ZR / OpenZR+) to maximize multi-vendor interoperability and future‑proof your network.

  • Wavelength and Multiplexing Strategy: Use tunable lasers and proper planning for DWDM grids (50/75/100 GHz) to maximize fiber utilization and avoid interference.

✅ Conclusion

Optech’s 400G digital coherent QSFP‑DD modules (QDD‑400G‑ZR, ZR+, ZRP+) provide a powerful, scalable, and cost-effective optical interconnect solution for modern high‑bandwidth networks. By combining the high capacity of 400 Gbps per wavelength, DWDM flexibility, and a hot‑pluggable compact form factor, they unlock a new generation of network design — where data centers, metro, and carrier networks can scale bandwidth without a proportional increase in footprint, power, or complexity.

If you’re designing or upgrading for AI workloads, cloud interconnect, 5G backhaul or DCI — Optech 400G coherent optics deserve a serious look.
