Embracing the Next Era of HPC: An Introduction to NVIDIA Spectrum-3 InfiniBand XDR Switches & Optical Transceivers

In the relentless pursuit of scientific discovery and AI innovation, the computational backbone of modern data centers is being pushed to its limits. Exascale computing, large-language models, and sophisticated simulations demand not just raw processing power, but an equally powerful and intelligent network fabric to keep data flowing without bottlenecks. Enter the next generation of InfiniBand: InfiniBand XDR (Extended Data Rate).

At the heart of this revolution is the NVIDIA Spectrum-3 ASIC, the engine powering a new class of switches designed to meet the formidable challenges of tomorrow's workloads. Today, we focus on three foundational members of this new portfolio—the NVIDIA MMS4A00-XM, MMS4A50-XM, and MMS4A20-XM800—and the high-speed optical transceivers engineered to unlock their full potential.

The Foundation: NVIDIA Spectrum-3 and InfiniBand XDR

Before diving into the specific models, it's crucial to understand the underlying technology. The Spectrum-3 ASIC is a monumental leap forward, representing the world's first 400Gb/s InfiniBand switch chip. It enables XDR data rates, doubling the bandwidth of the previous HDR generation to 400 Gb/s per port.

But Spectrum-3 is about more than just speed. It is the core of the NVIDIA Quantum-2 platform, which unifies computing, networking, and security into a single, integrated architecture. Key features include:

• Blazing Speed: 400 Gb/s per port, scalable to a massive 51.2 Tb/s of aggregate switching capacity.

• Advanced In-Network Computing: Leverages NVIDIA Scalable Hierarchical Aggregation and Reduction Protocol (SHARPv3) to offload collective operations from the CPU, dramatically accelerating AI and HPC applications.

• Enhanced Security: Fully isolated "NVIDIA Air" simulation environments and robust data path protection.

• Precision Timing: Ultra-accurate synchronization for distributed workloads.

• Cloud-Native Orchestration: Comprehensive support for Kubernetes, Docker, and leading cloud frameworks.

A Closer Look at the Spectrum-3 Switch Portfolio

NVIDIA's new switch lineup is designed to provide flexibility for different deployment scenarios, from building dense leaf spines to managing massive core layers.

1. NVIDIA MMS4A00-XM - The High-Density Core/Spine Switch

The MMS4A00-XM is the workhorse for the core of your fabric. This is a 64-port, non-blocking switch where every port can run at 400Gb/s NDR. For environments still transitioning from HDR, it offers complete backward compatibility, allowing ports to be configured as 200Gb/s HDR.

• Key Specs: 64 ports of 400Gb/s NDR InfiniBand.

• Ideal For: Building the high-bandwidth spine of large-scale clusters, exascale computing facilities, and massive AI training infrastructures.

2. NVIDIA MMS4A50-XM - The Flexible Aggregation Switch

The MMS4A50-XM strikes a perfect balance between port density and flexibility. It provides 48 ports of 400Gb/s NDR, offering a slightly different form factor and configuration option for aggregation-layer deployments where 64 ports are not required, but performance and features cannot be compromised.

• Key Specs: 48 ports of 400Gb/s NDR InfiniBand.

• Ideal For: Top-of-rack (ToR) aggregation, medium-scale spine layers, and environments requiring a high number of NDR ports in a compact unit.

3. NVIDIA MMS4A20-XM800 - The Gateway to XDR Performance

The MMS4A20-XM800 is a strategic switch for integrating new XDR infrastructure with existing HDR systems. It features 20 ports of 400Gb/s NDR and 8 ports of 200Gb/s HDR. This hybrid design is invaluable for phased migrations, allowing you to connect new NDR compute nodes while maintaining seamless connectivity to legacy HDR storage and compute resources.

• Key Specs: 20 x 400Gb/s NDR ports + 8 x 200Gb/s HDR ports.

• Ideal For: Bridging HDR and NDR fabrics, connecting storage arrays, and providing a cost-effective entry point into the XDR ecosystem.

Unlocking Maximum Performance: Optical Transceivers for Spectrum-3 Switches

To fully realize the potential of the Spectrum-3 switches, it is critical to deploy high-speed optical transceivers designed for seamless integration. These transceivers are the physical lifelines that carry data between switches and to compute nodes, directly determining link bandwidth, reach, and reliability.

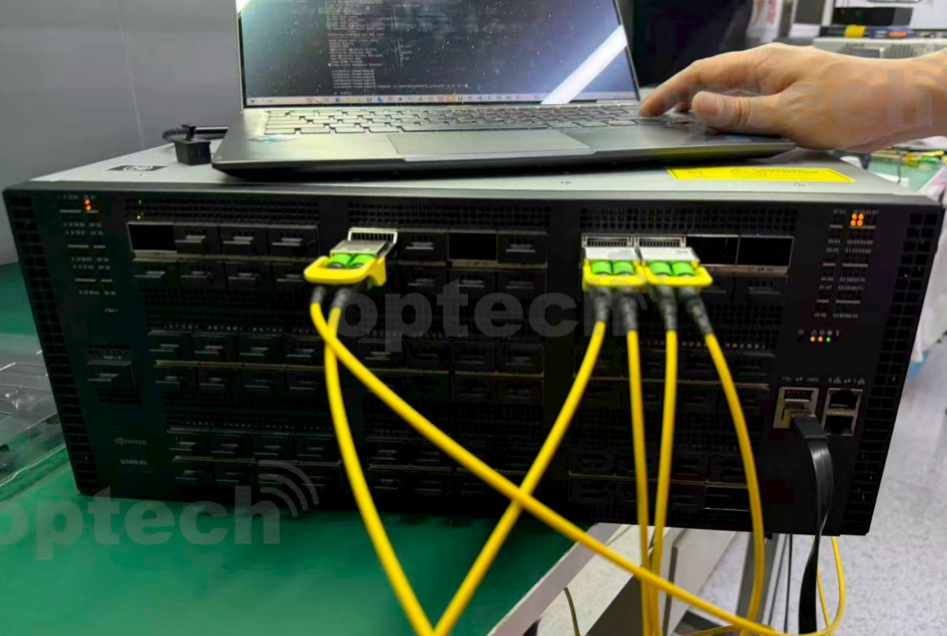

1. For MMS4A00-XM: 1.6T 2xDR4/DR8 OSFP224 Transceiver (P/N: 980-9IAH1-00XM00)
This transceiver is the ideal choice for building top-tier core networks, designed to maximize the port utilization of the MMS4A00-XM.

• Ultra-High Bandwidth: Supports up to 1.6T aggregate bandwidth, interfacing seamlessly with the switch's 400Gb/s NDR ports via 2xDR4/DR8 mode.

• Advanced Technology: Utilizes a Broadcom 3nm DSP and Silicon Photonics for superior power efficiency and signal integrity.

• Connectivity & Reach: Features a Dual MPO-12/APC interface for transmission over 500m of Single-Mode Fiber (SMF), perfect for long-distance spine connections within a data center.

2. For MMS4A50-XM: 1.6T 2xFR4/FR8 OSFP224 Transceiver
This module provides a flexible and extended-reach connectivity solution for the MMS4A50-XM.

• Flexible Configuration: Supports 2xFR4/FR8 mode, delivering 1.6T of bandwidth.

• Longer Reach: Employs a Dual LC Duplex interface for transmission distances up to 2km, making it suitable for campus networks or distributed data center environments.

• Precision Monitoring: Features Digital Diagnostics Monitoring (DOM) for simplified network management and troubleshooting.

3. For MMS4A20-XM800: 800G DR4 OSFP224 Transceiver
This transceiver complements the hybrid port design of the MMS4A20-XM800, specifically addressing its 800G aggregation needs.

• Efficient Aggregation: Configured for 800G DR4, it uses 4x200G-PAM4 lanes to achieve 800G bandwidth, perfectly matching the switch's core uplink requirements.

• Mainstream Connectivity: Uses an MTP/MPO-12 APC connector with a 500m reach over SMF, meeting the vast majority of top-of-rack cabling requirements.

• Compact Design: Its form factor is optimized for high-density deployment environments.

The Switch-Transceiver Synergy:
The combination of these dedicated optical transceivers with the Spectrum-3 switches ensures end-to-end high performance, from the switch ASIC to the fiber link. They efficiently and reliably convert the electrical signals from the switch ports into optical signals, forming an indispensable component of a lossless, low-latency RDMA network.

Why This Matters for Your HPC and AI Infrastructure

Adopting the Spectrum-3 platform with these switches and their matched transceivers translates to tangible benefits:

• Eliminate Network Bottlenecks: Keep thousands of GPUs and CPUs fully saturated with data, reducing time-to-solution for complex problems.

• Future-Proof Your Investment: With support for the latest NDR speeds, in-network computing, and high-speed optical interconnectivity, your infrastructure will be ready for next-generation AI models and scientific simulations.

• Simplify Operations: The unified Quantum-2 platform, managed by NVIDIA UFM, provides end-to-end visibility, automation, and performance monitoring.

• Maximize ROI: By accelerating application performance through SHARP and reducing latency, you get more work done with your existing compute resources.

Conclusion

The transition to InfiniBand XDR, powered by the NVIDIA Spectrum-3 ASIC, is not an incremental update—it's a fundamental shift. The MMS4A00-XM, MMS4A50-XM, and MMS4A20-XM800 switches, together with their dedicated high-speed optical transceivers, provide the critical building blocks for constructing the high-performance, intelligent, and scalable networks that the future of computing demands.

At Optech, we are ready to help you navigate this new landscape. Contact us today to discuss how these cutting-edge NVIDIA Spectrum-3 InfiniBand switches and optical solutions can be integrated into your infrastructure to unlock new levels of performance.
