Unlocking 800G: A Guide to Next-Generation Optical Transceivers

Unlocking 800G: A Guide to Next-Generation Optical Transceivers

The insatiable global demand for data, driven by AI/ML workloads, cloud computing, and 5G expansion, is pushing data center networks beyond 400G. The industry has responded with a diverse portfolio of 800G optical transceivers, designed to meet varying requirements for reach, power efficiency, and cost. The products listed represent the cutting edge of this evolution, leveraging different technologies to optimize performance for specific scenarios.

The common form factor here is the OSFP (Octal Small Form Factor Pluggable), which is specifically designed for high-density, high-speed applications like 800G, offering superior thermal management compared to its QSFP-DD counterpart.

Technology Breakdown: Key Differentiators

Understanding the product descriptions requires decoding a few key acronyms:

• 800G: The data rate, 800 Gigabits per second.

• OSFP: The form factor (Octal Small Form Factor Pluggable).

• 2xFR4 / 2xSR4 / 2xDR4 / LR4: The optical interface and reach.

  • SR4: "Short Reach," for very short distances (up to 100m) over multimode fiber (MMF).

  • DR4/FR4: "Data Center Reach" / "Fibre Reach," for distances up to 500m and 2km, respectively, over single-mode fiber (SMF). The 2x prefix indicates a dual-channel design.

  • LR4: "Long Reach," for distances up to 10km over SMF.

  • ZR+: "Extended Reach," for long-haul distances up to 80km+ over SMF, using coherent optics.

• EML: Electro-Absorption Modulated Laser. A high-performance, established technology known for its excellent signal quality, ideal for longer reaches but with higher power consumption.

• SiPh: Silicon Photonics. An innovative technology that integrates optical components onto a silicon chip. It offers a compelling mix of performance, lower power consumption, and cost-effectiveness at scale, especially for reaches up to 2km.

• LPO: Linear Drive Pluggable Optics. A revolutionary architecture that removes the traditional DSP (Digital Signal Processing) chip from the transceiver. This drastically reduces power consumption and latency but requires tighter integration with the host switch's ASIC.

• DSP: Digital Signal Processor. A chip inside the transceiver that corrects signal impairments. It ensures high performance and interoperability but adds significant power consumption and latency.

• OPEN TOP: An open-top design that enhances airflow and thermal dissipation, allowing for higher power designs or operation in hotter environments.

• RHS (Robust Heat Sink): A design feature with an enhanced heat sink for superior thermal management in high-density setups.

• Power (W): The maximum power consumption, a critical factor for data center power budgets and thermal design.

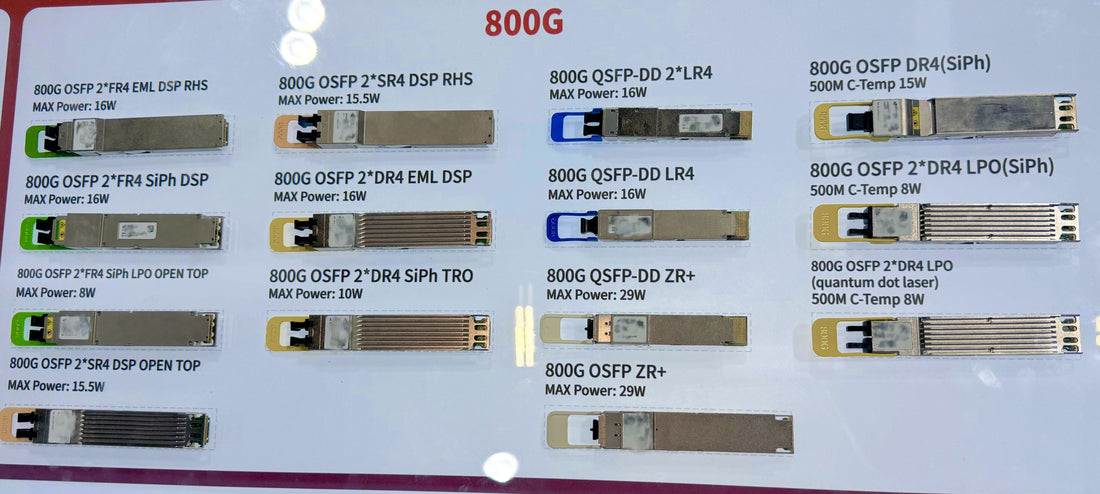

Product Introduction & Application Scenarios

Here is a breakdown of the listed products categorized by their primary application.

1. For Intra-Data Center Connectivity (Up to 2km)

These modules connect racks and rows within a massive data center.

• 800G OSFP 2xFR4 (EML & SiPh) | Power: 16W

  • Introduction: These modules break the 800G signal into 4x 100G lanes on the electrical side and 2x 200G lanes on the optical side (using WDM) for transmission over a pair of single-mode fibers. The EML version offers robust performance, while the SiPh version provides a more power-efficient alternative.

  • Scenario: Ideal for spine-leaf network connections and inter-switch links (ISLs) within a data center campus, covering reaches up to 2km.

• 800G OSFP 2xDR4 (EML & SiPh) | Power: 16W (EML), 10W (SiPh TRO)

  • Introduction: Similar to the FR4 but optimized for the shorter 500m reach. The SiPh version with TRO (likely a specific thermal/reliability optimization) shows a dramatic power reduction to 10W.

  • Scenario: Perfect for inter-rack and intra-row connectivity within a single data center hall.

• 800G OSFP 2xSR4 DSP | Power: 15.5W (Open Top & RHS)

  • Introduction: Designed for ultra-short reaches over OM4 multimode fiber. Both Open Top and RHS versions emphasize excellent thermal management to handle the 15.5W power dissipation in high-density faceplates.

  • Scenario: Connecting top-of-rack (ToR) switches to leaf switches within the same rack or adjacent racks.

2. The Low-Power Revolution: LPO Solutions

LPO technology is a game-changer for power- and latency-sensitive applications.

• 800G OSFP 2xFR4 SiPh LPO OPEN TOP | Power: 8W

• 800G OSFP 2xDR4 LPO (SiPh) | Power: 8W

• 800G OSFP 2xDR4 LPO (Quantum Dot Laser) | Power: 8W

  • Introduction: These modules eliminate the power-hungry DSP, cutting power consumption by more than 50% compared to their DSP-based equivalents. The use of SiPh and experimental technologies like Quantum Dot Laser (offering high efficiency and temperature stability) is key to achieving this ultra-low power draw. The Open Top design manages the remaining heat effectively.

  • Scenario: Ideal for high-performance computing (HPC) and AI/ML clusters where every watt and nanosecond of latency counts. Deployed in massive scale-out architectures where cumulative power savings are enormous.

3. For Long-Haul and Extended Reach (10km to 80km+)

These modules connect data centers across campuses, cities, and countries.

• 800G OSFP-DD 2xLR4 / LR4 | Power: 16W

  • Introduction: The OSFP-DD form factor adds an extra row of contacts for even higher density. These modules are designed for 10km reaches, a common requirement for connecting data centers across a metropolitan area.

  • Scenario: Data Center Interconnect (DCI) for metro-area networks.

• 800G OSFP-DD ZR+ | Power: 29W

• 800G OSFP ZR+ | Power: 29W

  • Introduction: These are coherent optical transceivers. They use advanced modulation techniques and sophisticated signal processing to transmit 800G signals over incredible distances of 80km or more. The high power consumption (29W) is necessary for the complex optics and electronics required for this performance.

  • Scenario: Long-haul DCI, telecommunications networks, and cable landing stations for extending cloud networks across regions.

Conclusion

The diverse 800G transceiver portfolio highlights a strategic shift in the industry: there is no one-size-fits-all solution. Network architects can now choose the optimal technology blend for each specific link:

• Maximum Performance & Reach: Choose EML or coherent modules.

• Balanced Performance & Efficiency: SiPh with DSP offers an excellent middle ground.

• Ultimate Power & Latency Savings: LPO is the emerging winner for in-rack and short-reach applications.

This flexibility ensures that the backbone of the internet can scale efficiently to 800G and beyond, powering the next decade of digital innovation while managing critical constraints like energy consumption.
